80 Plus Power Supply Ratings and What They Mean

80 Plus Power Supply Ratings and What They Mean

What Does 80 Plus Actually Mean? Every power supply that is certified by the 80 Plus standard will supply at least 80 percent power efficiency at 20, 50, and 100 percent load. Additionally, each power supply rating must show a power factor of at least 0.9 at a 50 percent load.

  1. What is 80 PLUS certified power supply?
  2. Is 80+ a good power supply?
  3. What is the difference between 80 plus gold and bronze?
  4. What do the numbers on a power supply mean?
  5. Is Platinum Better Than Gold PSU?
  6. Is 80 plus white good enough?
  7. What happens if your power supply is too weak?
  8. Is 500W power supply enough?
  9. How do I know if I need a new power supply?
  10. Is Bronze Power Supply good enough?
  11. Should I buy bronze or gold PSU?
  12. What is the best 80 plus rating?

What is 80 PLUS certified power supply?

What does a power supply with 80 Plus rating mean? 80 Plus is a certification designed to denote that a power supply is at least 80% efficient at 20%, 50%, and 100% loads. This means a 500W 80 Plus rated PSU would draw a maximum of 625W at 100% load.

Is 80+ a good power supply?

I personally recommend choosing PSUs rated at gold or higher, as 80 Plus Gold are at least 90 percent efficient at 50 percent load, and 87 percent efficient at 20 and 100 percent load. ... Higher-grade parts mean they can hold up under load and will often last longer.

What is the difference between 80 plus gold and bronze?

All 80+ certified PSUs deliver 80% efficiency at a specified load (mentioned above). The difference between all of these is some possess a higher efficiency at 20%, 50%, and 100% load. ... The most common ones we see manufacturers pushing out are 80+ bronze and 80+ gold.

What do the numbers on a power supply mean?

Generally the more powerful the PSU, the higher the current numbers should be. ... 3.3V – orange wires – 18 or more Amps of current desired. 5V – red wires – 18 or more Amps of current desired. +12V – yellow wires – 30 or more Amps of current desired (or more, depending on your GPUs).

Is Platinum Better Than Gold PSU?

80 Plus Gold PSUs are 35-61% more expensive within the same wattage category. Platinum-level power supplies are 90-100% more expensive; twice the price of a standard 80 Plus unit. ... Power supplies in the 1kW and greater category don't put much of a premium on high-efficiency units.

Is 80 plus white good enough?

yes. the CX450M is good quality and enough for your needs.

What happens if your power supply is too weak?

If the PSU is too weak, there will happen some unwanted things with your PC: PC won't start to Windows (or any other OS installed). While loading to Windows your PC will freeze or will restart repeatedly. ... If the PC successfully went into Windows, your PC will freeze or simply restart from time to time.

Is 500W power supply enough?

Most of these you can get new for about 40 dollars on Amazon is it a good deal or would 600-750 watt be more appropriate. 500W is plenty for the majority of builds. Unless you have a GTX 1080 ti, Vega 56/64, or an older high-end AMD card, it's almost always enough.

How do I know if I need a new power supply?

Symptoms of a failing computer power supply

  1. Random computer crashes.
  2. Random blue screen crashes.
  3. Extra noise coming from the PC case.
  4. Recurring failure of PC components.
  5. PC won't start but your case fans spin.

Is Bronze Power Supply good enough?

Not bad at all. As long as you're getting a name brand with at least a 80+ certification it'll be reliable. A good quality Bronze PSU isn't bad per se, it just isn't as good as a Gold or above. ... Both EVGA and Corsair sell good and not-so-good PSUs.

Should I buy bronze or gold PSU?

Some people are a bit more sensible to noiselevels, and find bronzes to be really loud. So, if you want to make your build really silent then going with an gold or even platinum PSU over bronze is a must. In other words, golds are not only more power-efficient, but also often a lot more "noise-efficient".

What is the best 80 plus rating?

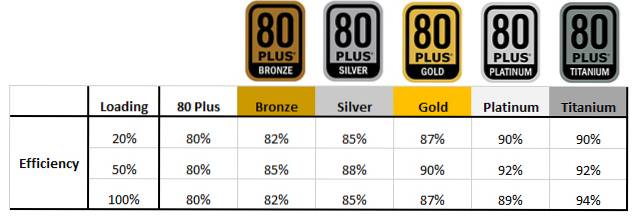

The Current 80 PLUS Levels

80 PLUS Certification230V EU Internal Non-Redundant
80 PLUS Silver---87%
80 PLUS Gold---90%
80 PLUS Platinum---92%
80 PLUS Titanium90%94% / PFC .95
