How to check the partition style of a disk on Windows 10

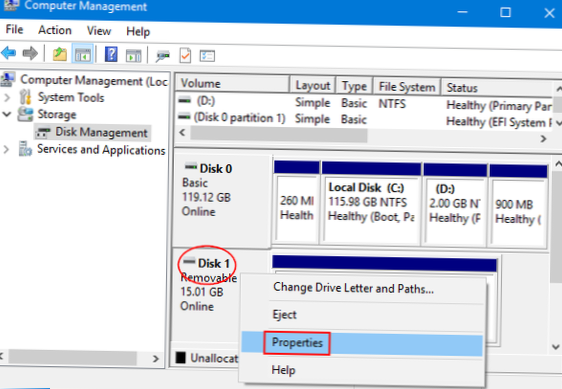

Locate the disk you want to check in the Disk Management window. Right-click it and select “Properties.” Click over to the “Volumes” tab. To the right of “Partition style,” you'll see either “Master Boot Record (MBR)” or “GUID Partition Table (GPT),” depending on which the disk is using.

1. How do I check my disk partition style?
2. How do I know which partition is Windows?
3. What type of partition does Windows 10 use?
4. How do I read a GPT partition in Windows 10?
5. How do I know which partition is C drive?
6. Can Windows 10 install on MBR partition?
7. How do I know if my USB is UEFI bootable?
8. How many partitions does Windows 10 create?
9. Is NTFS MBR or GPT?
10. What partition scheme does Windows 10 use for Rufus?
11. Is 150GB enough for C drive?
12. Should Windows be installed on a separate partition?

How do I check my disk partition style?

Right-click on the hard drive available in the center of the window, then select Properties. This will bring up the Device Properties window. Click the Volumes tab and you'll see if the partition style of your disk is GUID Partition Table (GPT) or Master Boot Record (MBR).

How do I know which partition is Windows?

The partitions are shown with their drive letters in the top window. While in the Disk Management console right click on the partition and select Properties or Explore and you should be able to figure out which is which.

What type of partition does Windows 10 use?

Each operating system platform has its own way of partitioning a drive. Windows 10 can use as little as four primary partitions (the MBR partition scheme), or as many as 128 (the newer GPT partition scheme).

How do I read a GPT partition in Windows 10?

Right-click on (My) Computer. Choose Manage. Select Disk Management (listed under Storage). Look for the drive that is identified as GPT and note the Disk number (such as Disk 1).

How do I know which partition is C drive?

1 Answer

1. To display all disks available, type following command (and hit ENTER): LIST DISK.
2. In your case, there should be Disk 0 and Disk 1 . Pick one – e.g. Disk 0 – by typing SELECT DISK 0.
3. Type LIST VOLUME.

Can Windows 10 install on MBR partition?

On UEFI systems, when you try to install Windows 7/8. x/10 to a normal MBR partition, the Windows installer will not let you install to the selected disk. partition table. On EFI systems, Windows can only be installed to GPT disks.

How do I know if my USB is UEFI bootable?

The key to finding out if the installation USB drive is UEFI bootable is to check whether the disk's partition style is GPT, as it's required for booting Windows system in UEFI mode.

How many partitions does Windows 10 create?

As it's installed on any UEFI / GPT machine, Windows 10 can automatically partition the disk. In that case, Win10 creates 4 partitions: recovery, EFI, Microsoft Reserved (MSR) and Windows partitions.

Is NTFS MBR or GPT?

NTFS is neither MBR or GPT. NTFS is a file system. In fact, it is an acronym for “New Technology Files System.”

What partition scheme does Windows 10 use for Rufus?

If the system you are going to install Ubuntu 18.04 supports UEFI then choose GPT. At the time you choose ISO file in Rufus it's automatically choose suitable partition scheme and most of Debian based os uses UEFI partition scheme.

Is 150GB enough for C drive?

when C drive gets full or close to getting full, it slowdowns the system. so, 20GB or even 70GB is not enough. if you have 1TB of HDD, I suggest you go for at least 150GB of C drive . and 300GB is ideal for best results.

Should Windows be installed on a separate partition?

The thought that if you reinstall Windows, your installed application programs are safe if they are in a separate partitions is simply wrong. ... For best performance, the page file should normally be on the most-used partition of the least-used physical drive.
